Tried Edge AI with MediaTek® Genio 1200

Introduction.

We have tried to perform AI inference using
ADLINK's I-Pi SMARC 1200 with an octa-core (Arm® Cortex-A78 x4 + A55 x4) MediaTek® Genio 1200.

We have summarized the procedure and invite you to give it a try.

＜Main products used in this study

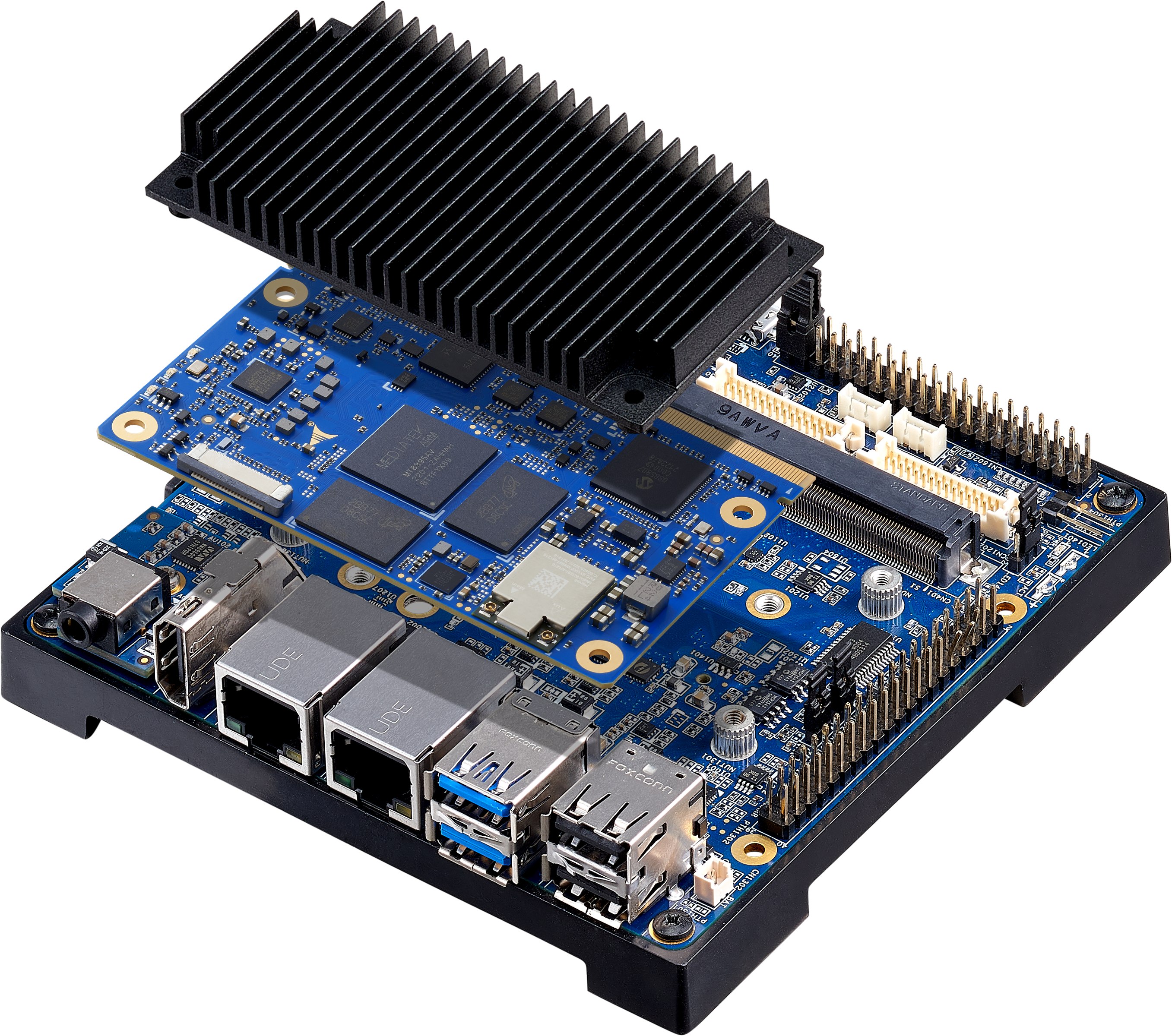

I-Pi SMARC 1200 (I-Pi SMARC Plus carrier, ADLINK SMARC LEC-MTK-I1200 module, 4GB LPDDR4X, 64GB UFS storage)
MediaTek® Genio 1200 platform-based I-Pi SMARC development Kit.

Other items to be prepared for this project:

1. Preparation
　・Linux Host PC (used to write Yocto image to SMARC UFS storage)
　・HDMI cable and monitor
　・USB mouse and keyboard
　・LAN cable (for Internet connection)
　・Webcam (for AI demo)

2. For 2.0 or later
　・Host PC (Linuc or Windows) with serial console access
　・Serial console cable
　・HDMI cable and monitor
　・LAN cable (for connection to the Internet)
　・Webcam (for AI demonstration)

Reference:

Building a Yocto Linux environment with ADLINK's I-Pi SMARC development kit based on the MediaTek® Genio 1200 platform

The main steps are as follows

Preparation
Serial console
Preparation for AI Inference
Running AI Inference

1. advance preparation

Refer to the following article to build a SMARC bootable environment using the pre-built Yocto Image provided by ADLINK.

Building a Yocto Linux environment with ADLINK's I-Pi SMARC development kit based on the MediaTek® Genio 1200 platform

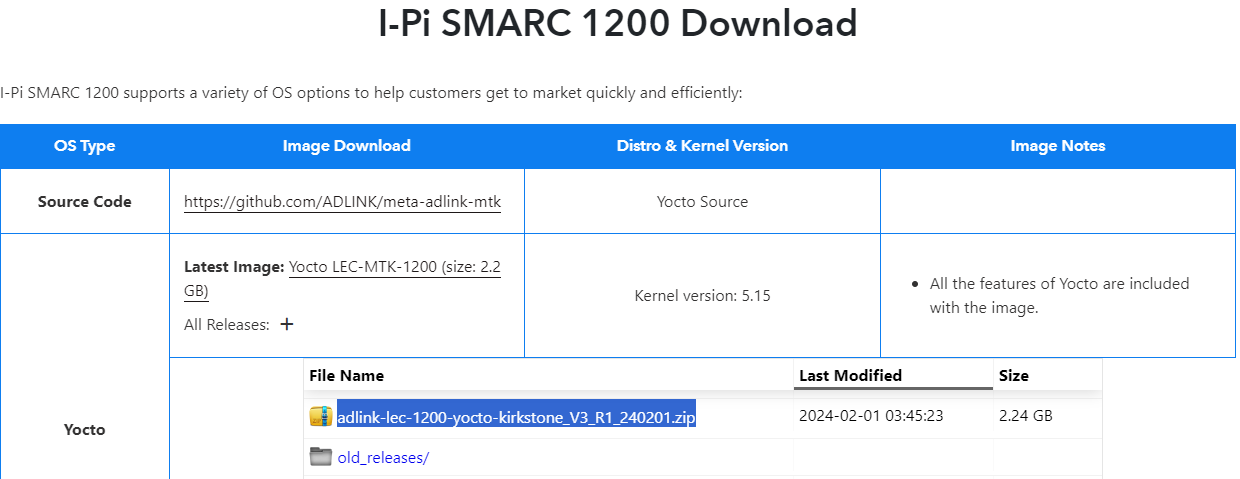

As a precaution, please use the following Yocto Image for this project.

 adlink-lec-1200-yocto-kirkstone_V3_R1_240201

2. Serial console

Connect to SMARC from Host PC by serial console referring to the following article.

ipiwiki:Reading The Data From Serial Port

The following is an example on Windows PC. If you see the following console on TeraTerm of Host PC at the time of SMARC startup, the serial console connection has been successfully established. 3.

3. Preparation before AI Inference

Start SMARC.

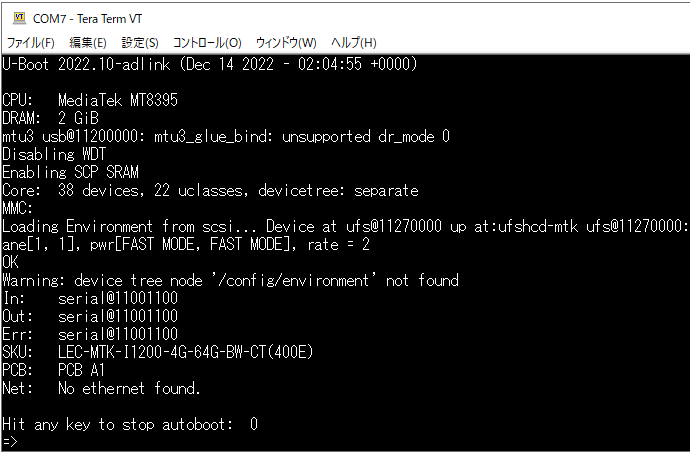

While "Hit any key to stop autoboot:" is displayed on the console screen of the Host PC,
If you input any key, the U-Boot prompt will be displayed.

(If no key is entered during this time, the system will boot automatically. In that case, log in as root, reboot, and try again.)

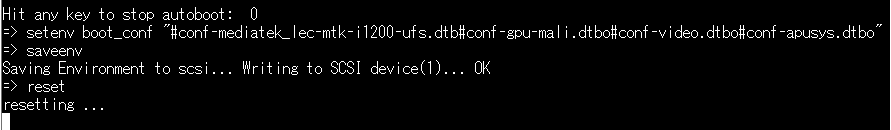

Execute the following command

 setenv boot_conf "#conf-mediatek_lec-mtk-i1200-ufs.dtb#conf-gpu-mali.dtbo#conf-video.dtbo#conf-apusys.dtbo"
saveenv
reset

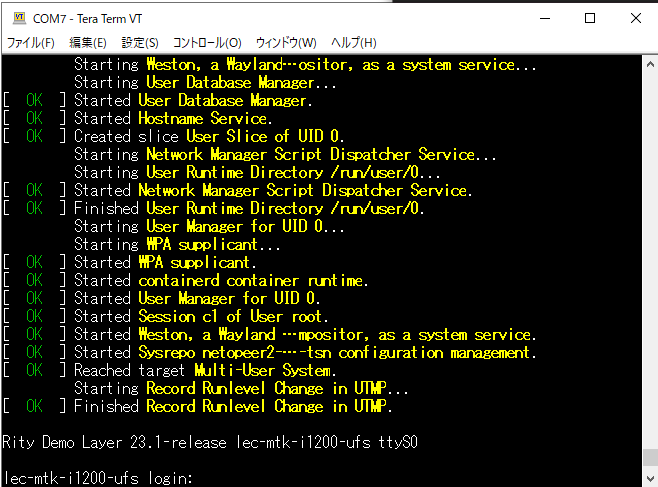

When the following screen appears, log in as root.

Confirm the video device name of the connected webcam.

 # v4l2-ctl --list-devices

We found that the device name is /dev/video5.

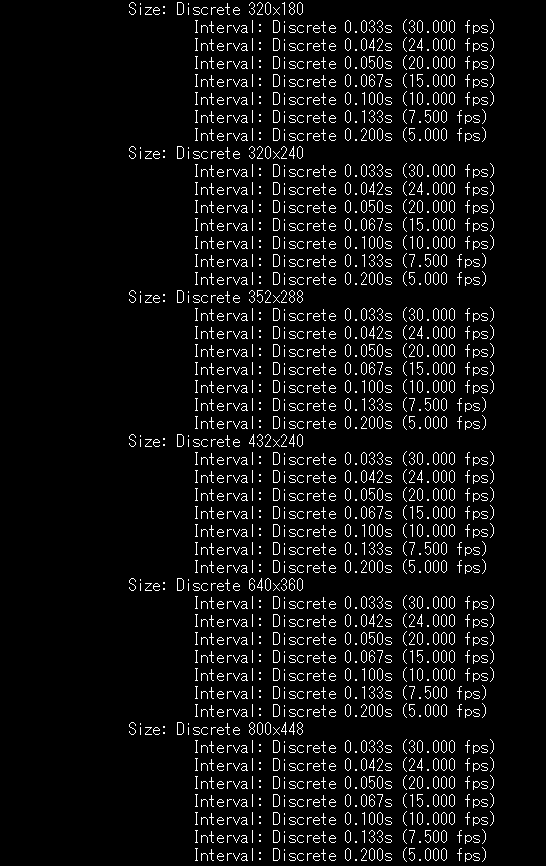

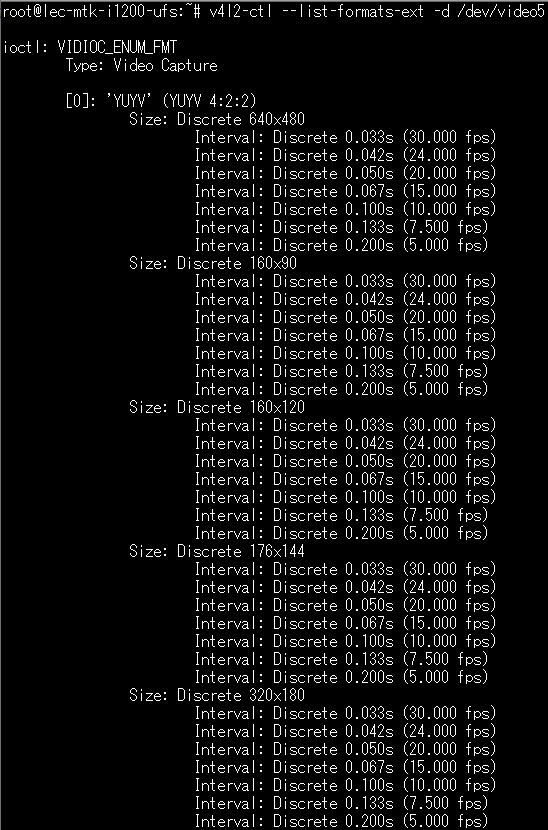

Get camera information.

 # v4l2-ctl --list-formats-ext -d /dev/video5

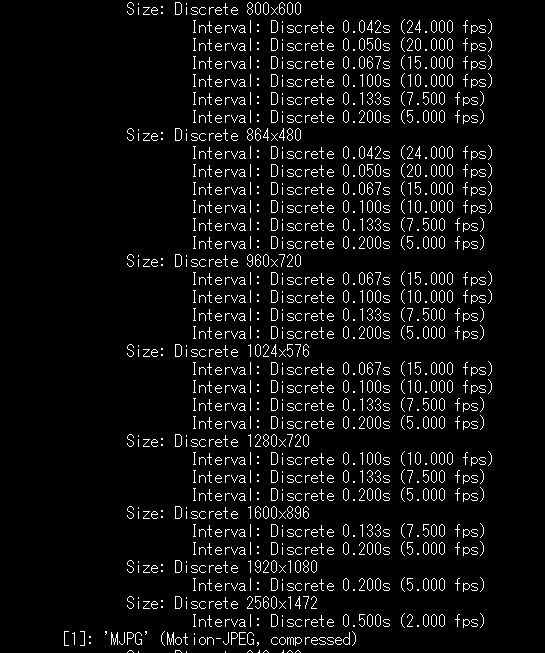

Check the format, size, and frame rate of the connected camera. 4.

4. run AI inference

Here is a sample of NNStreamer in Python. Let's try a few.

/usr/bin/nnstreamer-demo/

Python script	Category
run_nnstreamer_example.py	Demo Runner
nnstreamer_example_image_classification.py	Image classification
nnstreamer_example_object_detection.py	Object detection
nnstreamer_example_object_detection_yolov5.py	Object detection
nnstreamer_example_pose_estimation.py	Pose estimation
nnstreamer_example_face_detection.py	Face detection
nnstreamer_example_low_light_image_enhancement.py	Image enhancement

Move to /usr/bin/nnstreamer-demo/ with the cd command.

 # cd /usr/bin/nnstreamer-demo/

Option --engine:

When running the sample, use --engine to select one of the following backends supported by the platform

neuronsdk tflite tflite neuronsdk , tflite armnn

options --camera: select input camera

option --performance: set the platform performance mode

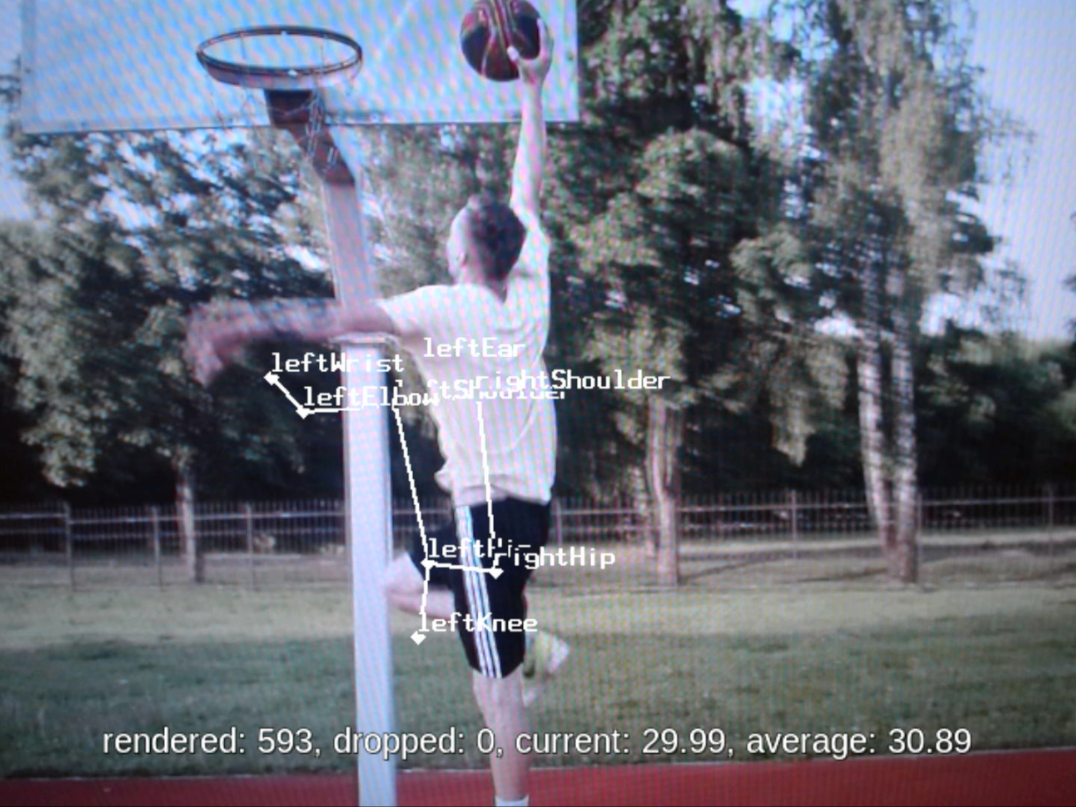

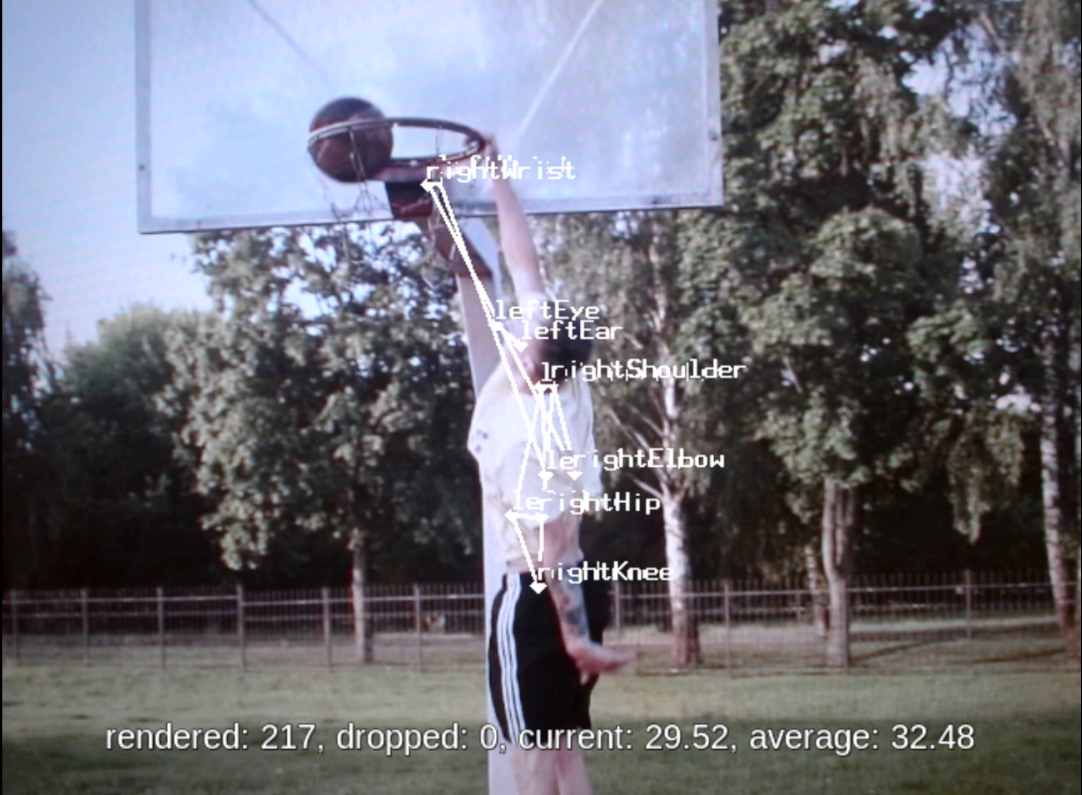

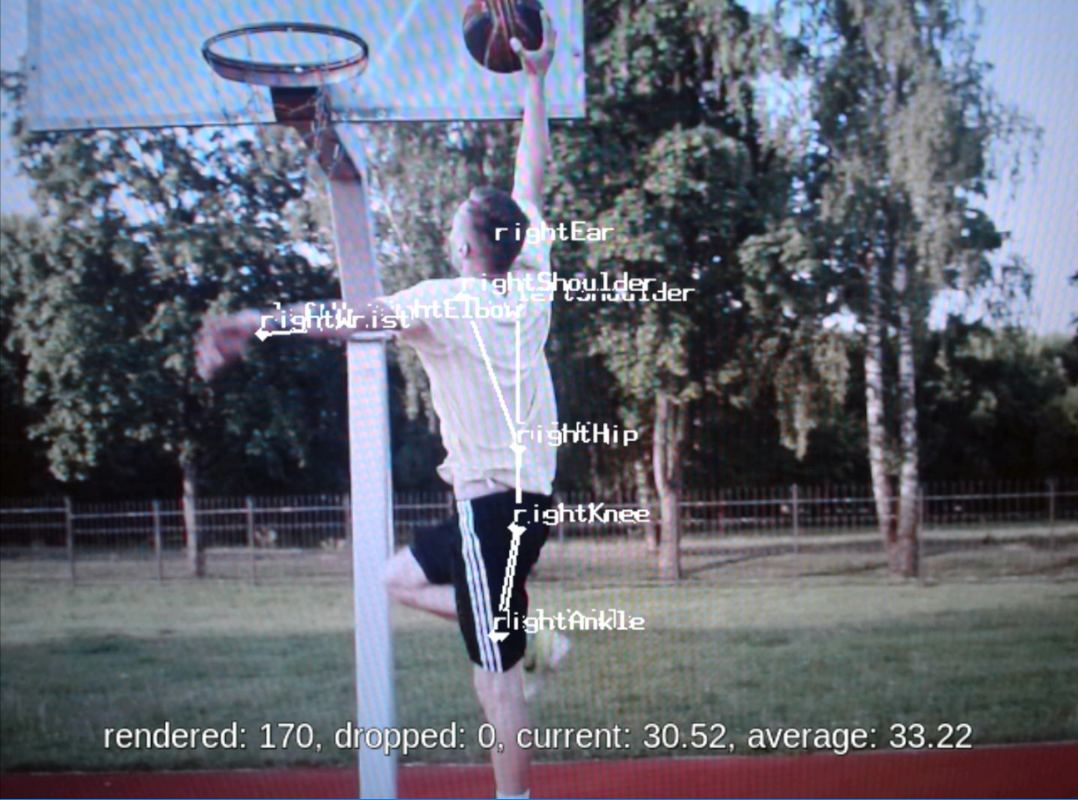

Posture estimation

Run the sample Execute nnstreamer_example_pose_estimation_uvc.py.

Run with MDLA by neuronsdk: --engine neuronsdk

 # python3 nnstreamer_example_pose_estimation_uvc.py \
--engine neuronsdk --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--engine tflite Running on CPU with tflite: --engine tflite

 # python3 nnstreamer_example_pose_estimation_uvc.py \
--engine tflite --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--engine armnn --engine armnn --engine armnn --engine armnn --engine armnn --engine armnn --engine armnn --engine armnn --engine armnn

 # python3 nnstreamer_example_pose_estimation_uvc.py \
--engine armnn --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

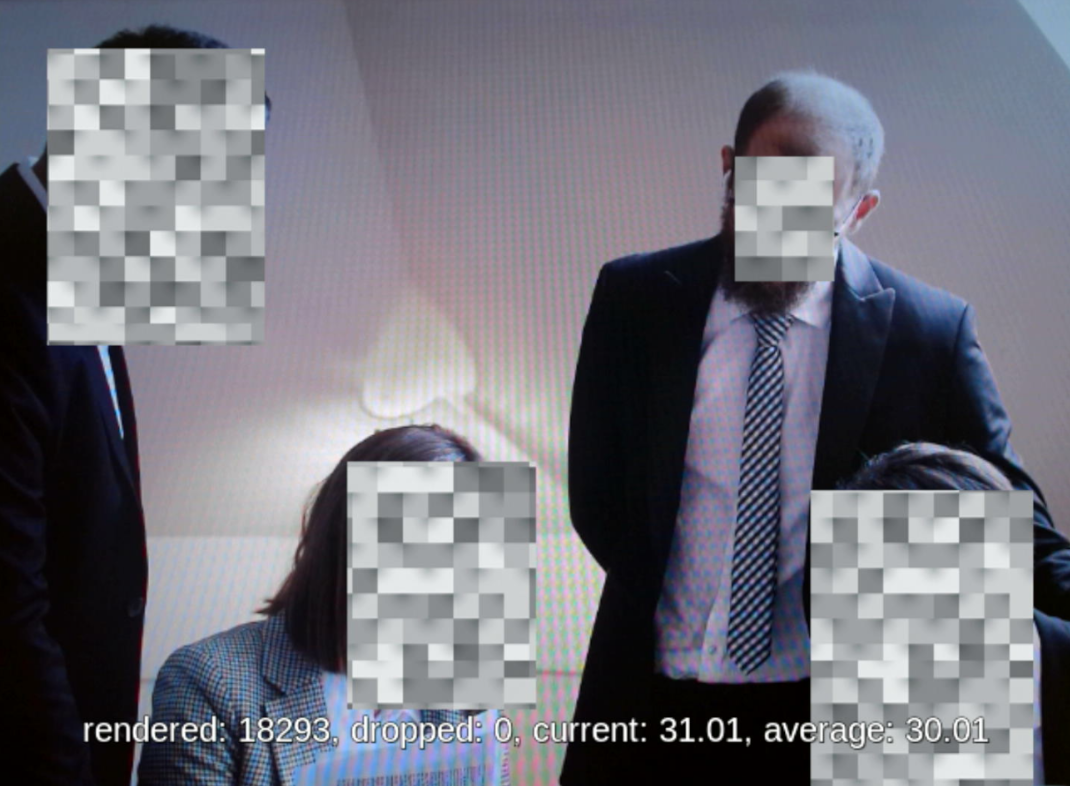

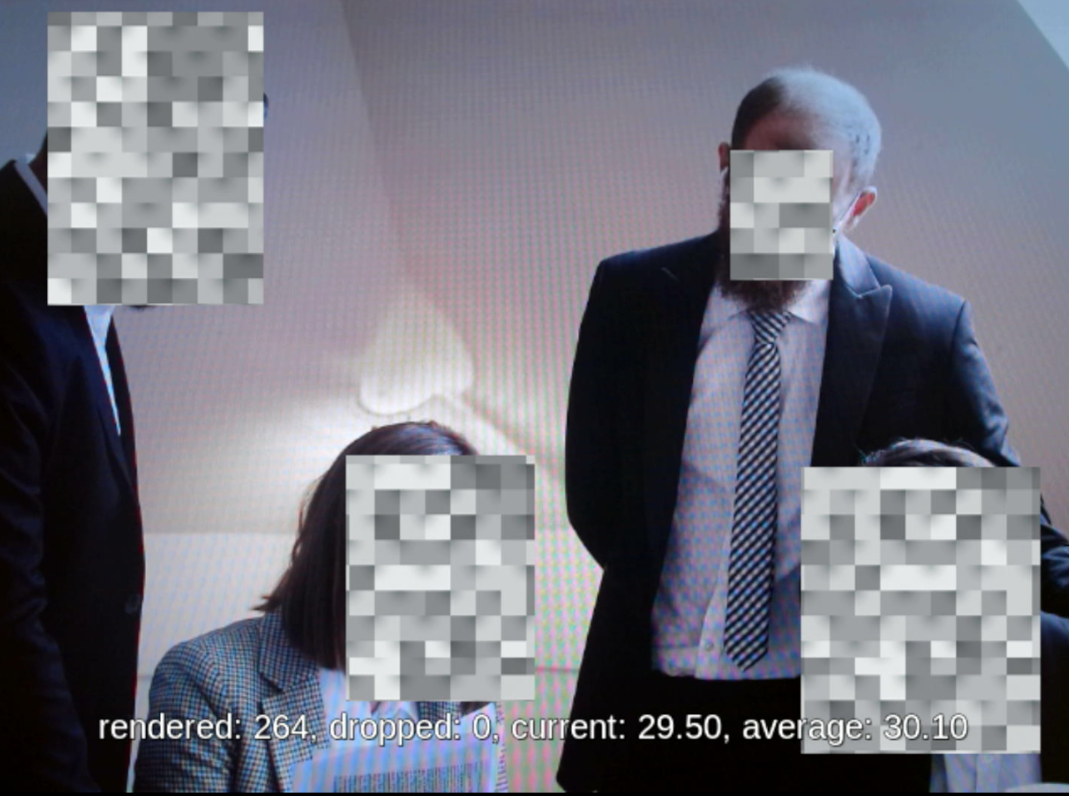

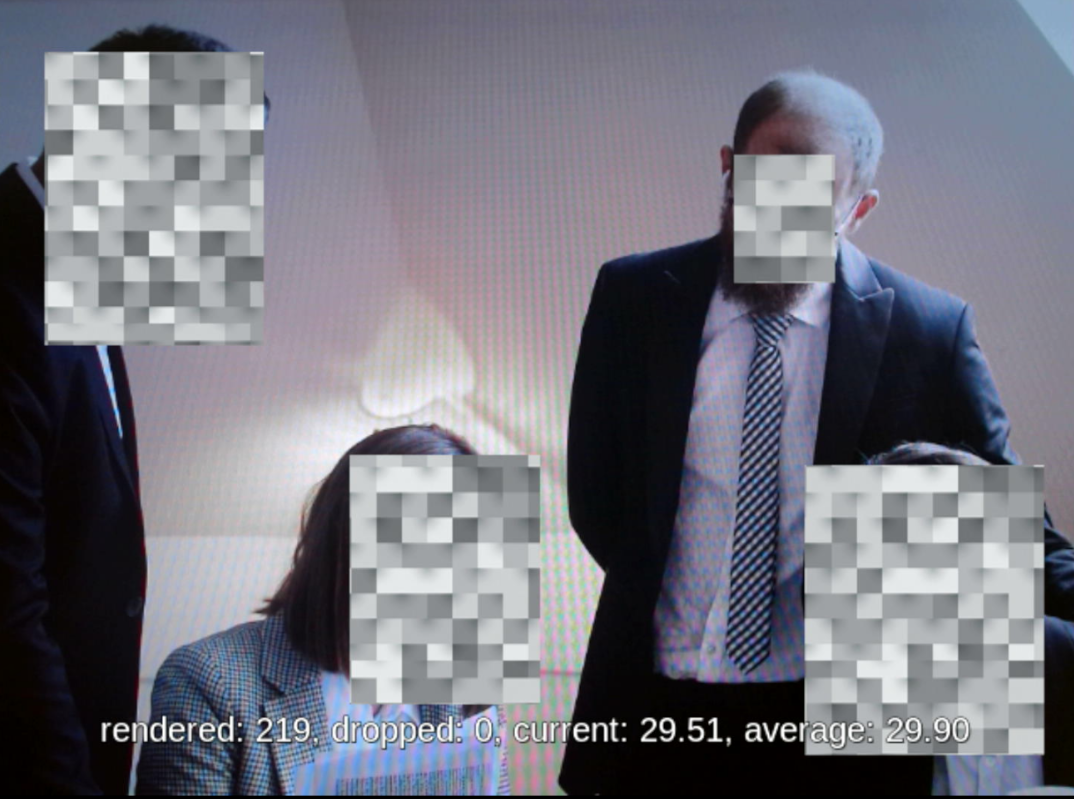

Face Detection

Sample Run nnstreamer_example_face_detection.py.

Execute with MDLA by neuronsdk: --engine neuronsdk

 # python3 nnstreamer_example_face_detection_uvc.py \
--engine neuronsdk --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--engine tflite Running on CPU with tflite: --engine tflite

 # python3 nnstreamer_example_face_detection_uvc.py \
--engine tflite --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--Run on GPU with Armnn: --engine armnn

 # python3 nnstreamer_example_face_detection_uvc.py \
--engine armnn --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

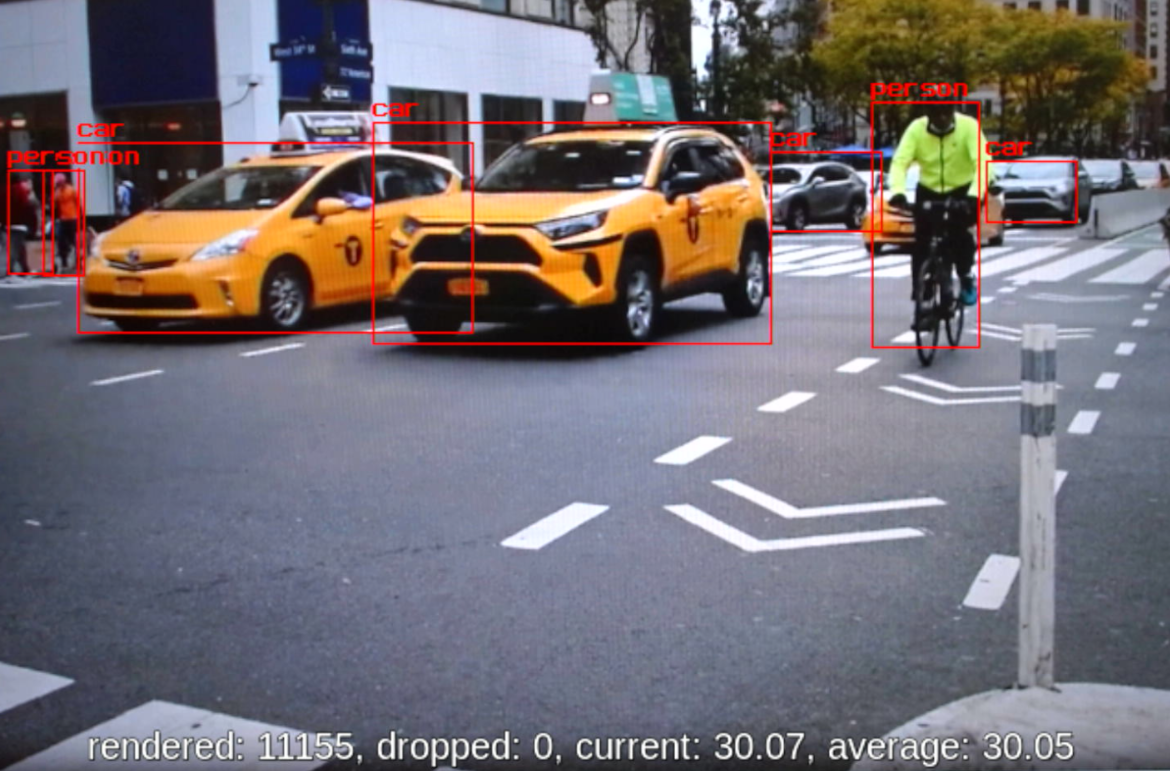

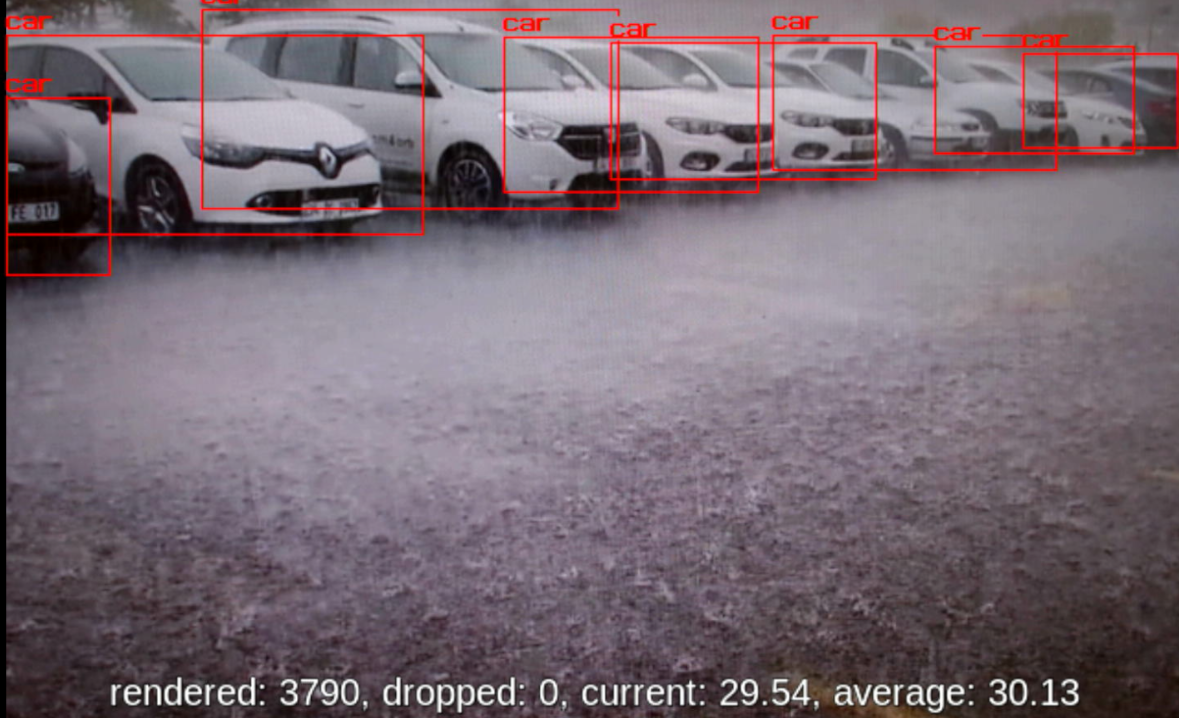

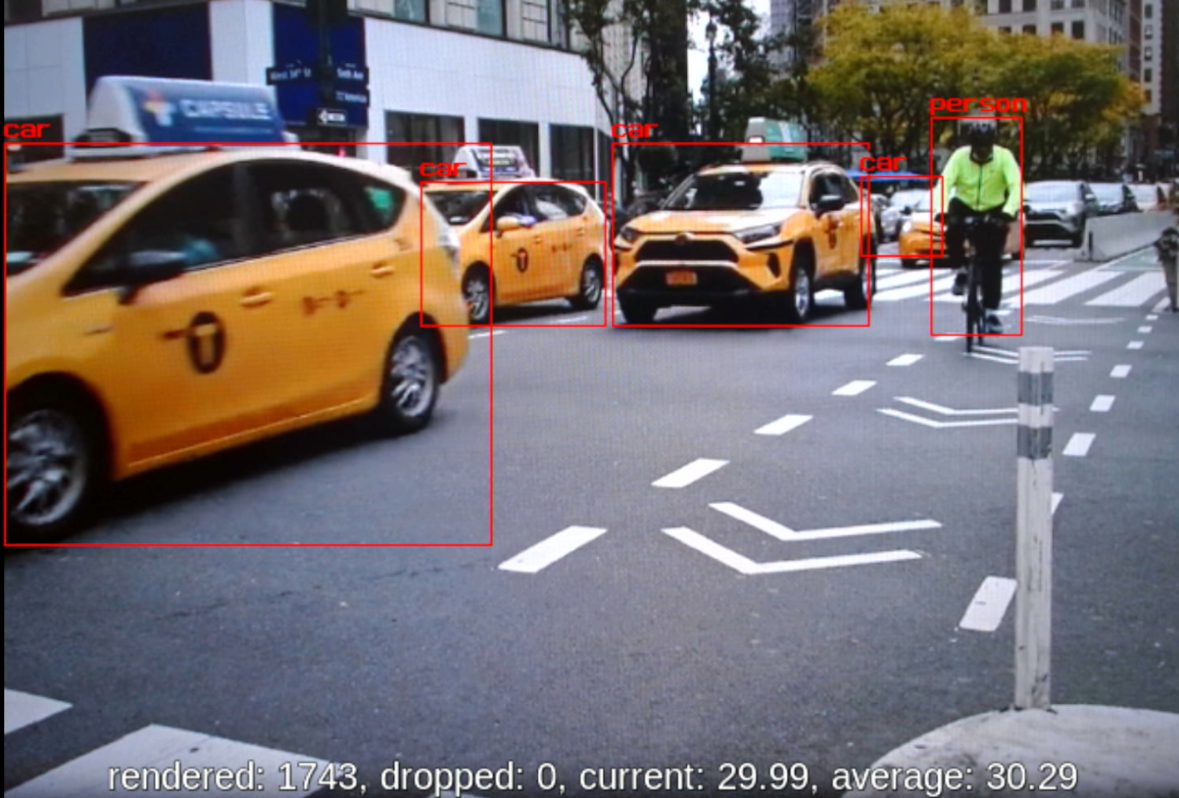

object detection (ssd_mobilenet_v2_coco)

Sample Execute nnstreamer_example_object_detection_uvc.py.

Execute with MDLA by neuronsdk: --engine neuronsdk

 # python3 nnstreamer_example_object_detection_uvc.py \
--engine neuronsdk --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--run on CPU with tflite: --engine tflite :.

 # python3 nnstreamer_example_object_detection_uvc.py \
--engine tflite --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

--engine armnn Running on GPU with Armnn: --engine armnn

 # python3 nnstreamer_example_object_detection_uvc.py \
--engine armnn --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1

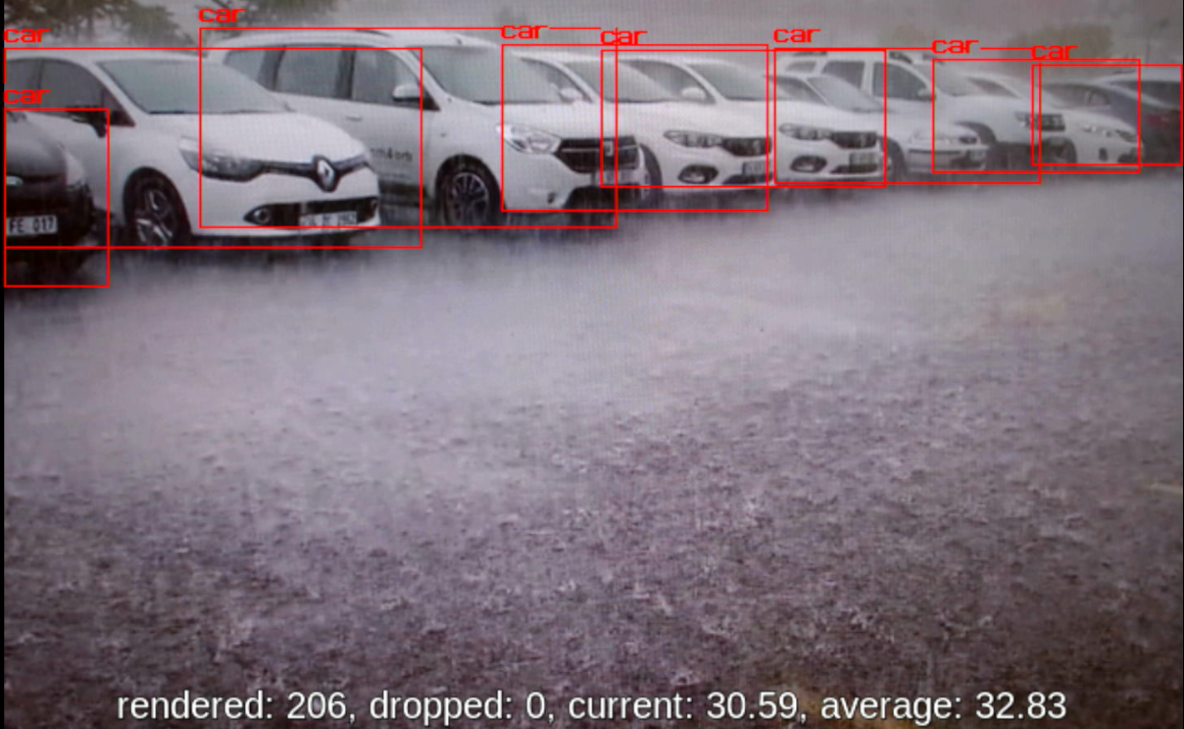

Object detection (yolov5)

Sample Execute nnstreamer_example_object_detection_yolov5_uvc.py.

Run on CPU with tflite: --engine tflite :.

 # python3 nnstreamer_example_object_detection_yolov5_uvc.py \
--engine tflite --cam 5 --width 640 --height 480 --performance G1200 --fullscreen 1
