This series of Quartus® Guides is intended for users of Quartus® Prime / Quartus® II development software.

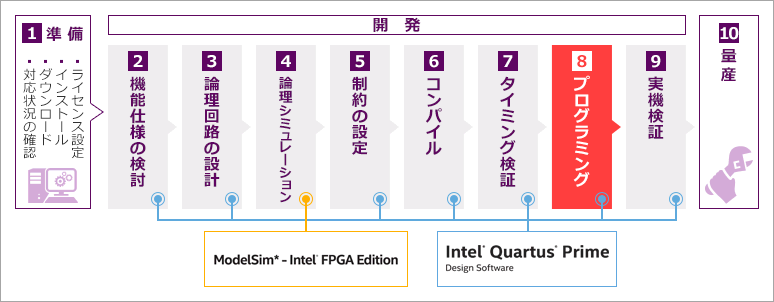

FPGA / CPLD Development Flow For more information on FPGA / CPLD development flow, Click here for more information on the FPGA / CPLD development flow.
Description
This document is a reference for the " 8. Programming " phase of FPGA / CPLD development.
This document describes how to use the Convert Programming File in the Quartus® Prime / Quartus® II development software.
Convert Programming File allows you to convert or combine FPGA SOF files (*.sof) supported by Quartus® Prime / Quartus® II development software into other file formats.
Convert Programming Files allows you to combine or convert FPGA SOF files (*.sof) supported by Quartus Prime development software into the following file formats. The file formats that can be converted with Convert Programming File are as follows
- Hexadecimal (Intel-Format) Output File for SRAM (.hexout)
- Programmer Object File (.pof)
- Raw Binary File (.rbf)
- Tabular Text File (.ttf)
- Programmer Object File for Remote Update (.pof)
- Programmer Object File for Local Update (.pof)
- Raw Programming Data File (.rpd)
- JTAG Indirect Configuration File (.jic)
- Merged Mask Settings File (.msf)
- Merged Partial-Masked SRAM Object File (.pmsf)
- HPS IO File (.hiof)
- Hexadecimal (Intel-Format) Output File for EPCE(4|8|16)/EPC(4|8|16) (.hexout)
Documentation
This document has been retitled from v15.1.
ELS1374_Q1400_10__1.pdf: "Quartus II Beginner's Guide - How to Use Convert Programming File ver.14" (Document for tool version: Ver.14.0)
ELS1421_Q1510_10__1.pdf: "Quartus Prime - Convert Programming Files ver. 15.1" (document for tool version: Ver. 15.1)
