Industrial PC/CPU modules available for immediate evaluation

Introduction

We deal with many overseas industrial PC vendors. Recently, due to the tightening demand for semiconductors, we have been receiving an increasing number of inquiries from customers who are having trouble obtaining evaluation equipment, not only for mass production, but also for evaluation purposes.

This article introduces some examples of equipment that we are able to lend out. We may be able to arrange for equipment not listed here, so please feel free to contact us.

BOX PC Products

BOX PCs are PCs with CPUs that are more environmentally resistant than consumer PCs, and are claimed by device manufacturers to be supplied over a long period of time.

The BOX PC has a serial communication interface, which is often used in industrial applications, and is highly connectable and can be used in a wide range of situations.

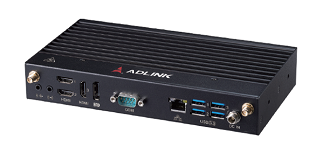

Compact BOX PC with 11th generation Intel® CPU : ADLINK AMP-300/500-TGL

Product page ( AMP-300 / AMP-500 )
Product Datasheet
Features
- 11th generation Intel® Core™ i5/i3 and Celeron® BGA SoC processors
- Full FH, 4K, and 8K output on up to 4 channels
- 4-channel USB 3.2 Gen 1
- Built-in COM port (DB-9): supports RS-232
- GbE port

BOX PC with Intel® Xeon® processor: ADLINK MVP-6100

Product page
Product Datasheet
Features
- 9th Gen Intel® Xeon®/Core™ i7/i5/i3 and 8th Gen Celeron® LGA processors
- Extensive I/O
  - 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/
    8 ch DI/ 8 ch DO/ TPM2.0
- USB 3.1 Gen2 + 1x USB 3.1 Gen1 + 3x USB 2.0USB 3.2 Gen1 on 4 channels
- Up to 4 SATA storage devices can be installed
- Multiple PCI Express Gen 3 slots
- M.2 2280

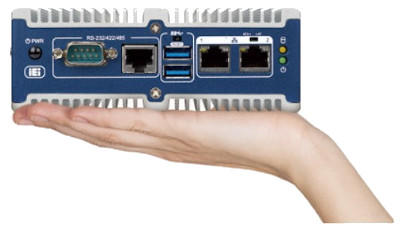

Small and palm-sized PC : IEI ITG-100AI

Product Page
Product Datasheet
Features
- Intel® Atom™ x5-E3930 1.3GHz
- Ultra-compact box PC that fits in the palm of your hand
- USB 3.2 Gen 1 on 2 channels
- 2 COM ports (DB-9/RJ45): supports RS-232/422/485
- 2 GbE ports installed
- Wi-Fi module can be installed
- VPU module compatible with OpenVINO™ toolkit

Note: This product is EOL. This product is EOL and is available while supplies last.

Modular Products

Modular products are boards with CPUs built according to various standards such as COM Express®, SMARC, and Qseven® (Q7). By preparing the interface part on a carrier board, different CPUs can be used by replacing the module if they are of the same standard, and the common carrier board can be used, thus reducing the development time.

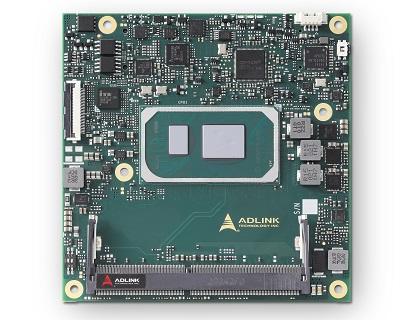

[COM Express®] Equipped with the 11th generation Intel® CPU ADLINK cExpress-TL

Product page
Product Datasheet
Standard : COM Express® Compact Size Type 6
Features : 11th generation Intel® Core™ i7/i5/i3 and Celeron® processors
- 11th generation Intel® Core™ i7/i5/i3 and Celeron® processors
- 2.5GbE Ethernet, with optional TSN
- 2x 8K or 4x 4K display

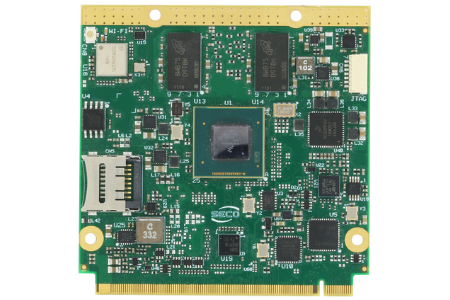

[Qseven®] NXP i.MX 8M on board : SECO Q7-C25

Product page
Product Datasheet
Standard : Qseven® Rel. 2.0 Qseven® Rel. 2.1
Features
- Arm® Cortex®-A53 + Cortex®-M4 processor Cortex®-M4 processor
- H.264 encoder/decoder
- Optional WiFi + Bluetooth module can be implemented
- DDR4 and eMMC pre-installed

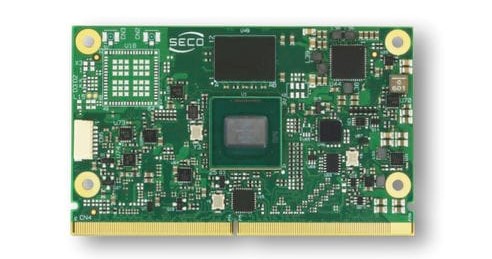

[SMARC] NXP i.MX 8M Plus : SECO SM-D18

Product page
Product Datasheet
Standard : SMARC Rel. 2.1.1
Features
- Arm® Cortex®-A53 + Cortex®-M4 processor Cortex®-M4 processor
- Dedicated Neural Processing Unit (NPU)
- H.264 encoder/decoder
- Optional WiFi + Bluetooth module can be implemented
- DDR4 and eMMC pre-installed

Manufacturer

Reference Information

Conclusion

The products introduced in this article are just a few of the products that we offer. We may be able to arrange for equipment not listed here, so please feel free to contact us for more information.
