Altera® SoC FPGAs use U-Boot as the bootloader on the HPS (hard processor system) side, and the Ethernet communication check can be performed by using the command function implemented in U-Boot.
This function can be used for simple testing before the production software, OS, and drivers are ready, such as when checking board startup.
1. Preparation: U-Boot Settings
The U-Boot does not require any special customization; simply make the Preloader/U-Boot project generated by BSP-Editor, which is included in the SoC FPGA Embedded Development Suite (SoC EDS) tool, as is.
Power on the target board with the serial terminal connected, and press Enter while the U-Boot countdown display is showing, so that the prompt for waiting for commands appears.
This article is based on our testing with U-Boot on a Cyclone® V SoC target, but the same procedure should work for other device families. It is assumed that you already know how to build and write the U-Boot.
Reference: Beginner's Guide to SoC - How to use Preloader Generator – Macnica Altera FPGA Insights
2. Environment variable setting (MAC address)
When checking Ethernet, it is necessary to set the MAC address. If "Warning: failed to set MAC address" is displayed in the terminal log during U-Boot execution, it means that the MAC address has not been set, so set and save the MAC address (ethaddr) using setenv and saveenv commands as follows.
SOCFPGA_CYCLONE5 # setenv ethaddr 02:11:22:33:44:55
SOCFPGA_CYCLONE5 # saveenv
Saving Environment to MMC.... .
Writing to MMC(0)... done
3. Setting IP address
Set IP address (ipaddr) and subnet mask (netmask) in the same way.
SOCFPGA_CYCLONE5 # setenv ipaddr 192.168.10.101
SOCFPGA_CYCLONE5 # setenv netmask 255.255.255.0※The dhcp command is also available, but is not recommended.
The following is a log of dhcp execution for reference. First, the IP address is obtained, but then the image load is executed (It seems that it is possible to obtain an IP address from DHCP by canceling (Ctrl+C) in the middle).
SOCFPGA_CYCLONE5 # dhcp
BOOTP broadcast 1
DHCP client bound to address 192.168.10.24
*** Warning: no boot file name; using '0AD92318.img'
Using mii0 device
TFTP from server 0.0.0.0; our IP address is 192.168.10.24
Filename '0AD92318.img'.
Load address: 0x8000
Loading: *T T T T
Abort
4. Execute ping command: Check for communication (ICMP packets sent/received)
Execute the ping command specifying the destination IP address (e.g. 192.168.10.100). The first time, a log indicating that a Linkup is to be performed and the Linkup result will also be displayed.
If no response is received and communication fails, the message "ping failed; host XX.XX.XX.XX is not alive" is displayed.
SOCFPGA_CYCLONE5 # ping 192.168.10.100
Waiting for PHY auto negotiation to complete..... done
ENET Speed is 1000 Mbps - FULL duplex connection
Using mii0 device
ping failed; host 192.168.10.100 is not aliveIf the connection is successful, "host XX.XX.XX.XX is alive" will be displayed.
SOCFPGA_CYCLONE5 # ping 192.168.10.100
Using mii0 device

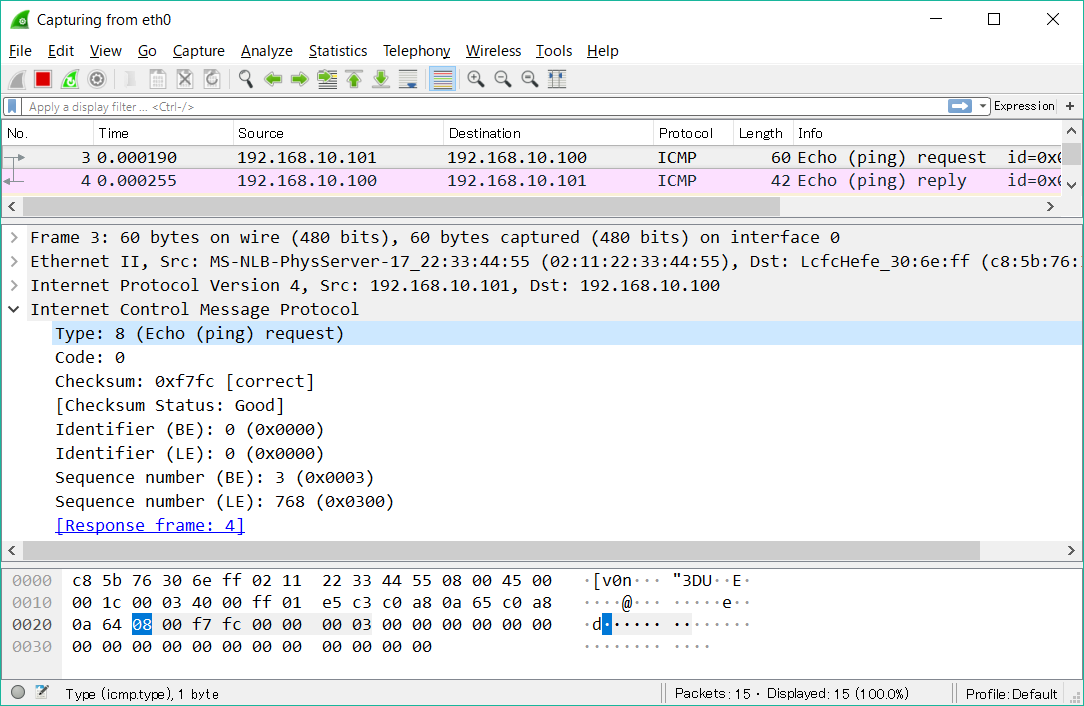

host 192.168.10.100 is aliveUsing the packet monitor tool on the destination (PC) side, you can confirm that packets were actually sent and received.
5. [Extra] mii, mdio commands : Read/Write PHY registers
In the list of U-boot commands (displayed by the help command), it seems that Ethernet-related commands other than ping are available. The help display for the mdio and mii commands is shown below.
<mii command HELP>
SOCFPGA_CYCLONE5 # help mii
mii - MII utility commands
Usage:
mii device - list available devices
mii device <devname> - set current device
mii info <addr> - display MII PHY info
mii read <addr> <reg> - read MII PHY <addr> register <reg>
mii write <addr> <reg> <data> - write MII PHY <addr> register <reg>
mii dump <addr> <reg> - pretty-print <addr> <reg> (0-5 only)
Addr and/or reg may be ranges, e.g. 2-7.<mdio command HELP>
SOCFPGA_CYCLONE5 # help mdio
mdio - MDIO utility commands
Usage:
mdio list - List MDIO buses
mdio read <phydev> [<devad>.]<reg> - read PHY's register at <devad>.<reg>
mdio write <phydev> [<devad>.]<reg> <data> - write PHY's register at <devad>.<reg>
<phydev> may be:
<busname> <addr>
<addr>
<eth name>
<addr> <devad>, and <reg> may be ranges, e.g. 1-5.4-0x1f.
If you are interested, you can actually run the command to try it out. Attached is a log of the results of a trial run.
<mii command execution example>
SOCFPGA_CYCLONE5 # mii info 1
PHY 0x01: OUI = 0x0885, Model = 0x22, Rev = 0x02, 1000baseT, FDX
SOCFPGA_CYCLONE5 # mii dump 1 0
0. (1000) -- PHY control register --
(8000:0000) 0.15 = 0 reset
(4000:0000) 0.14 = 0 loopback
(2040:0000) 0. 6,13 = b00 speed selection = 10 Mbps
(1000:1000) 0.12 = 1 A/N enable
(0800:0000) 0.11 = 0 power-down
(0400:0000) 0.10 = 0 isolate
(0200:0000) 0. 9 = 0 restart A/N
(0100:0000) 0. 8 = 0 duplex = half
(0080:0000) 0. 7 = 0 collision test enable
(003f:0000) 0. 5- 0 = 0 (reserved)
SOCFPGA_CYCLONE5 # mii dump 1 1
1. (796d) -- PHY status register --
(8000:0000) 1.15 = 0 100BASE-T4 able
(4000:4000) 1.14 = 1 100BASE-X full duplex able
(2000:2000) 1.13 = 1 100BASE-X half duplex able
(1000:1000) 1.12 = 1 10 Mbps full duplex able
(0800:0800) 1.11 = 1 10 Mbps half duplex able
(0400:0000) 1.10 = 0 100BASE-T2 full duplex able
(0200:0000) 1. 9 = 0 100BASE-T2 half duplex able
(0100:0100) 1. 8 = 1 extended status
(0080:0000) 1. 7 = 0 (reserved)
(0040:0040) 1. 6 = 1 MF preamble suppression
(0020:0020) 1. 5 = 1 A/N complete
(0010:0000) 1. 4 = 0 remote fault
(0008:0008) 1. 3 = 1 A/N able
(0004:0004) 1. 2 = 1 link status
(0002:0000) 1. 1 = 0 jabber detect
(0001:0001) 1. 0 = 1 extended capabilities
SOCFPGA_CYCLONE5 # mii dump 1 2
2. (0022) -- PHY ID 1 register --
(ffff:0022) 2.15- 0 = 34 OUI portion
SOCFPGA_CYCLONE5 # mii dump 1 3
3. (1622) -- PHY ID 2 register --
(fc00:1400) 3.15-10 = 5 OUI portion
(03f0:0220) 3. 9- 4 = 34 manufacturer part number
(000f:0002) 3. 3- 0 = 2 manufacturer rev. number
SOCFPGA_CYCLONE5 # mii dump 1 4
4. (01e1) -- Autonegotiation advertisement register --
(8000:0000) 4.15 = 0 next page able
(4000:0000) 4.14 = 0 reserved
(2000:0000) 4.13 = 0 remote fault
(1000:0000) 4.12 = 0 reserved
(0800:0000) 4.11 = 0 asymmetric pause
(0400:0000) 4.10 = 0 pause enable
(0200:0000) 4. 9 = 0 100BASE-T4 able
(0100:0100) 4. 8 = 1 100BASE-TX full duplex able
(0080:0080) 4. 7 = 1 100BASE-TX able
(0040:0040) 4. 6 = 1 10BASE-T full duplex able
(0020:0020) 4. 5 = 1 10BASE-T able
(001f:0001) 4. 4- 0 = 1 selector = IEEE 802.3
SOCFPGA_CYCLONE5 # mii dump 1 5
5. (cde1) -- Autonegotiation partner abilities register --
(8000:8000) 5.15 = 1 next page able
(4000:4000) 5.14 = 1 acknowledge
(2000:0000) 5.13 = 0 remote fault
(1000:0000) 5.12 = 0 (reserved)
(0800:0800) 5.11 = 1 asymmetric pause able
(0400:0400) 5.10 = 1 pause able
(0200:0000) 5. 9 = 0 100BASE-T4 able
(0100:0100) 5. 8 = 1 100BASE-X full duplex able
(0080:0080) 5. 7 = 1 100BASE-TX able
(0040:0040) 5. 6 = 1 10BASE-T full duplex able
(0020:0020) 5. 5 = 1 10BASE T able
(001f:0001) 5. 4- 0 = 1 selector = IEEE 802.3
SOCFPGA_CYCLONE5 # mii dump 1 6
The MII dump command only formats the standard MII registers, 0-5.
SOCFPGA_CYCLONE5 #＜mdio command execution example>
SOCFPGA_CYCLONE5 # mdio list
mii0:
1 - Generic PHY <--> mii0
SOCFPGA_CYCLONE5 # mdio read mii0 0
Reading from bus mii0
PHY at address 1:
0 - 0x1000
SOCFPGA_CYCLONE5 # mdio read mii0 1
Reading from bus mii0
PHY at address 1:
1 - 0x796d
SOCFPGA_CYCLONE5 # mdio read mii0 2
Reading from bus mii0
PHY at address 1:
2 - 0x22
SOCFPGA_CYCLONE5 # mdio read mii0 3
Reading from bus mii0
PHY at address 1:
3 - 0x1622
SOCFPGA_CYCLONE5 #
Conclusion
As a final note, the Ethernet driver implemented in the U-Boot does not seem to always listen on the receiving side. Therefore, it cannot respond to pings (ICMP requests) from other terminals. It only waits for a response from the destination terminal when a ping is sent from the U-Boot command. Thus, the Ethernet program implemented in U-Boot is very simple, and we recommend that you perform only a simple test at the communication check level in U-Boot, and perform the details in the production software environment.
