1. Introduction
The Intel® HLS (High Level Synthesis) compiler is a command line tool (CUI), which can be difficult for users unfamiliar with command line based work.
This content introduces the Intel® HLS compiler for Linux and how it can be used from coding to compilation in the Eclipse GUI.
Environment used for verification
- Intel® HLS Compiler ver. 19.3
- Intel® Quartus® Prime Development Software Pro Edition ver. 19.3
- Linux distribution: Red Hat Enterprise Linux workstation release 6.10 (Santiago)
- Eclipse version: Mars.2 Release (4.5.2)
2. preliminary preparation
The method described here uses the Eclipse environment used for Nios® II SBT.
If you have already set up the Nios® II SBT environment, no additional work is required.
If you have not yet set up the Nios® II SBT environment, please refer to the following contents to install Eclipse, although this article is for the Windows version.
- Installation instructions for using Nios® II SBT / SoC EDS with Quartus® Prime Pro ver 19.1
- Installation instructions for using Nios® II Software Build Tools / SoC Embedded Development Suite with Quartus® Prime Pro Edition 19.1
3. execution in Eclipse
3-1. initial settings before starting GUI
First, run the script provided to set environment variables for running HLS.
$ source <TOOL INSTALL FOLDER>/hls/init_hls.sh
This will enable the i++ command.
3-2. launching the gui
Next, start Eclipse.

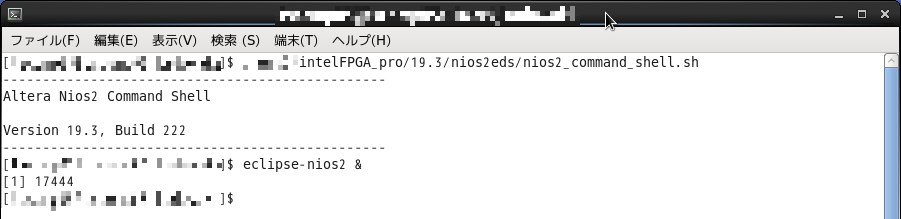

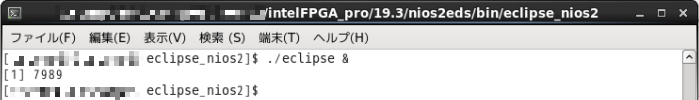

Execute nios2 command shell as follows and then eclipse-nios2.
$ eclipse-nios2 &

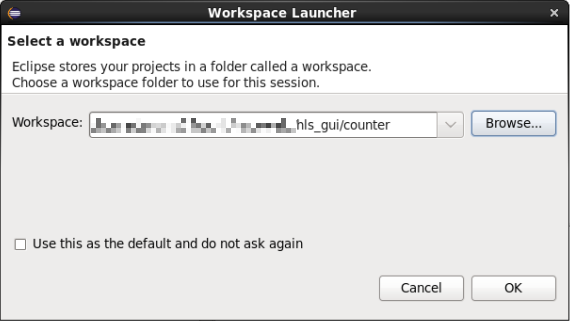

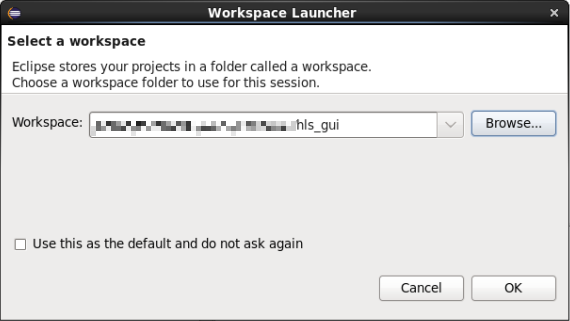

Eclipse will start, and a GUI for specifying a workspace will be displayed.
Then Eclipse will be launched. 3-3.
3-3. creating a project
Import the base project.

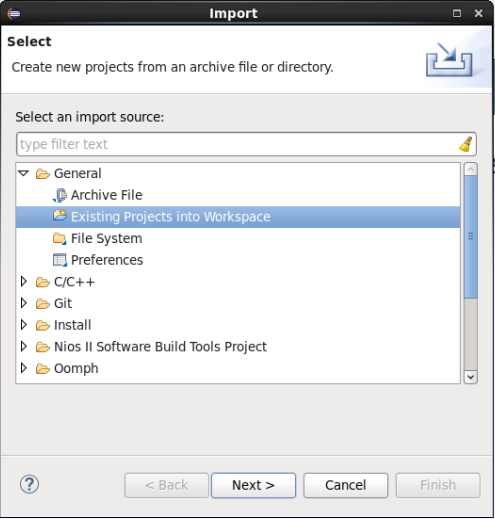

File menu → Import... → General → Existing Projects into Work → General → Existing Projects into Workspace.
As an example, we will use the sample provided when the tool is installed.
<TOOL INSTALL FOLDER>\hls\examples\counter
Select the above directory in "Browse" and check "Copy projects workspace" to copy this sample under workspace.
The project is now imported into Eclipse as shown below.
3-4. editing source code
Double-click the code to be edited in the Project Explorer on the left to open the editor.
You can edit the source code there.
3-5. compile the project
In the sample makefile, there are targets for emulation of software execution and co-simulation of hardware execution. By selecting these targets, the respective compilations are executed.

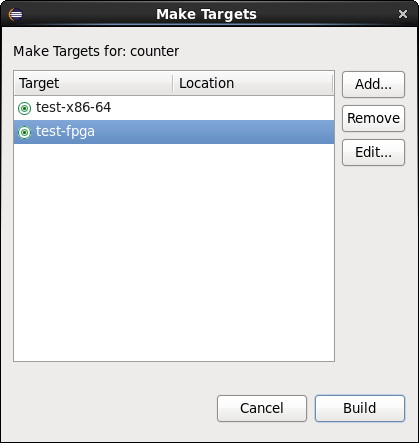

Right-click on the project and click Make Targets → Build.
You will then be prompted to select a target.
The targets shown here are those listed in the Makefile, and in this sample they are as follows.
- test-x86-64: Emulation
- test-fpga: Co-simulation
Emulation is to check the functionality without actually generating HDL IP, while co-simulation is to execute the generated HDL IP and check the performance aspect.
In this example, we will run co-simulation.
Select test-fpga and click Build to execute the co-simulation flow, and when it finishes, an executable file (test-fpga) and reports, component files, etc. are generated under test-fpga.prj as shown below.
Thus, the HLS compiler can now be used with Eclipse.
If you want to change the options added to i++ for execution, you can change the Makefile or add a target to the Makefile.
Executing the generated component

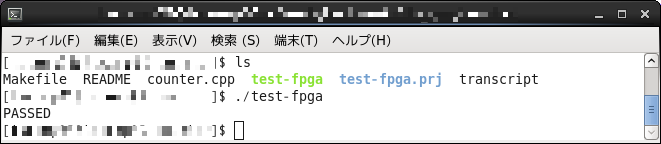

When executing the executable file generated earlier, you can confirm that the results are output as shown below. 5.
